Regression ladder

The regression ladder is yapnr’s ramping-complexity test suite: eight small boards, from one LED on a connector up to a TLC555 + CD4017B LED chaser on four copper layers. Each case starts from its circuit alone (a netlist of real KiCad library footprints on an empty outline; only the supply connector is fixed), runs the ordinary place-and-route pipeline, and is judged by KiCad’s own design-rule check (DRC) on the saved board. The fixtures, the runner and the frozen results of the engine’s last Splanc round live in hardware/pnr/regression/. Past case 08 the ladder continues with rungs 09 to 12: a USB microcontroller board, a hierarchical four-bank board, current-sized power copper, a buck stage on hot-rod lands, a 0.65 mm BGA escape with split rails and with a coupled pair, and a purpose-built 113-part BGA computer.

Every case below has an animation of its critical path: one straight line from the unplaced board to the fully routed board and KiCad’s verdict, including the experiments the final board descends from and, at each selection, the candidates it was chosen from. The animations are recorded with the runner’s own defaults (ladder-v2, docs/decisions.md): compact placement (PNR_COMPACT=1) and the gloss pass (PNR_GLOSS=1); --no-compact/--no-gloss turn either off for an A/B.

Status (2026-10-06): all eight cases pass the gate: 100 % routed, no open connections and no findings in KiCad’s DRC, in the runner’s own default configuration (compact placement, gloss, the initial placement pool, the fixtures’ own legacy fab profile – the animations’ configuration too, so docs and CI agree). The ladder routes and is judged under --fab-profile legacy (the runner’s default; jlc-pofv was tried as ladder-v2’s default and rolled back, docs/decisions.md, “New blocker”); under the engine’s own JLCPCB profile (--fab-profile jlc-pofv), where the router keeps vias 0.127 mm off SMD pads, every ladder and showcase case passes too (other boards, below).

Default-flip gate (2026-10-07, campaigns 20261007-ladder-4f191e, -0abe44 and -a98686, decisions.md): the runner’s default stays legacy, for the owner to decide. All 21 cells 20261006-ladder-b0ec34 found failing under jlc-pofv now pass: the last one, 11-ufbga201-fanout-6L-SGSGPS-rails, was a plane-partition bug (a plated through-hole pad was modelled as the disc inside it, so VBAT’s In4 fill round J7.1’s 1.7 mm square pad fell into three pieces whenever the allocation gave VBAT a plane; fixed, -rails passes 16 of 16 on seeds 0 to 7 under both profiles). Across the 45 gated cells (90 seed runs) jlc-pofv passes 90 to legacy’s 88 (legacy fails 09-mcu-usb-31-header seed 0 and 09-mcu-usb-31-mc seed 1 on skew findings), with the same opens and fewer vias (3627 vs 3894) and less copper (29.5 m vs 31.9 m). But the three manual target rungs, which fail under both profiles, leave more open under jlc-pofv: 11-shove-channel-lm-14 3 nets vs 2 (both seeds), 12-soc-bga-113 (under its declared jlc-6l-hdi) 51 unrouted nets on seed 1 vs 33 and 35, and seed 0 past its 3600 s place-and-route budget; 11-shove-channel-14 is equal (2). The gate’s “no rung is worse than legacy” therefore does not hold for those rungs, and the flip waits for the owner.

The cases

Seed 0, with the runner’s own defaults (the initial placement pool: 8 starts, 3 routed finalists; compact placement; the gloss stage; the fixtures’ own legacy fab profile); KiCad 10.0.6, engine dfe747f1 (compact placement with the legalizer parts WIRE, TURN, SATELLITES, PAIRS and RELAX, and the GP-side escape-channel reservation that keeps block-level legalization from moving much; docs/design/compact-placement.md sections 12 and 13). “Opens” and “findings” are KiCad’s DRC counts on the saved board; “Placed” is the bounding box of the placed parts’ bodies (compactness in result.json) on the board’s outline; the time is the case’s wall time on the development Mac (darwin-arm64), niced, next to other work, gloss stage included (about 20 s of it is a fixed overhead).

Case

Parts

Nets

Layers

Added difficulty

Routed

Opens

Findings

Vias

Copper (mm)

Placed on board (mm)

Time (s)

Gate

01 Connector + LED

2

2

2

Basic connection; externally current-limited supply

100 %

0

0

0

6.30

5.7 × 6.2 on 18 × 14

36.8

pass

02 Resistor + LED

3

3

2

Movable series current limiter

100 %

0

0

0

13.16

7.7 × 6.9 on 20 × 16

26.1

pass

03 Two LEDs

5

4

2

Shared, branched supply and return

100 %

0

0

0

21.35

8.4 × 8.9 on 24 × 18

26.7

pass

04 Inverter indicators

8

6

2

SOT-23-5 pin escapes, an unused pad, 3-pin connector

100 %

0

0

2

55.42

12.7 × 12.6 on 26 × 20

31.9

pass

05 TLC555 blinker

10

7

2

8-pin IC, RC timing and control, bypass and bulk caps

100 %

0

0

7

114.42

14.3 × 14.8 on 30 × 24

41.8

pass

06 Two-stage chaser

14

11

2

TLC555 + CD4017B, cross-IC clock and reset, fanout

100 %

0

0

11

183.12

22.8 × 18.4 on 36 × 28

88.1

pass

07 Five-stage chaser

20

17

2

Five LED/resistor outputs, shared rails, dense routes

100 %

0

0

16

262.99

21.8 × 22.8 on 42 × 32

177.6

pass

08 Five-stage chaser with plane

20

17

4

Four copper layers, ground plane attachment and refill

100 %

0

0

31

211.01

19.2 × 23.1 on 42 × 32

56.1

pass

The table and the animations are rendered with detailed placement after legalization (2026-10-06, on by default with displacement-minimizing legalization; compact placement, section 13.H): against the run they replace (the same defaults without it), the copper is 10 % shorter over the eight cases (867.8 against 966.9 mm) and shorter on seven of them (02: 12.40 to 13.16 mm; 07: 294.64 to 262.99 mm), on one seed on the Mac, where the times also include other jobs’ load.

Against the animations they replace (2026-10-03: the same configuration without the legalizer parts, engine cfb7cb3, on the same Mac), the legalizer now picks each part’s slot and turn with its wirelength and turns parts in place where that shortens their wires: the copper is shorter on seven of the eight cases (05: 113.37 to 75.14 mm, 06: 208.79 to 165.58 mm, 07: 272.90 to 220.85 mm, 08: 215.62 to 172.61 mm; 01 is unchanged) and the vias fewer (04: 4 to 2, 05: 6 to 4, 06: 11 to 6, 07: 23 to 13, 08: 29 to 27). These are single seeds; the compact placement design (section 11) measures the parts on two seeds and the hard rungs.

The baseline configuration (no pool, neither opt-in stage), seeds 0 and 1, as the nightly CI lane runs it, passes all sixteen runs as well. The machine-readable results are in animations/ladder-results.json, and the provenance of the animations (the ladder run’s engine commit, sources_sha256 over its frozen sources, fabrication profile, platform and KiCad; the render’s Pillow version; each file’s trace and content hash) is in animations/manifest.json.

The gate (see the ladder README) requires a legal placement, complete routing with no deferred nets, the original pin and net assignments, tracks at their source widths, qualified SMD pad entries, and zero KiCad unconnected items and findings, warnings included. Signal tracks are 0.25 mm, supply and return at least 0.4 mm, clearance 0.2 mm, vias 0.6/0.3 mm: the fixtures’ own fabrication block, which the runner routes and judges under (PNR_FAB_PROFILE=legacy for every stage). --fab-profile jlc-pofv routes and judges under the engine’s default JLCPCB profile instead (0.127 mm clearance, 0.45/0.30 mm vias, vias 0.127 mm off SMD pads).

Rungs 09 to 12

Past the eight small cases the ladder continues with six of the hard rungs (hard_rungs.py, CI lane ladder): one per family, each judged by the same gate plus the rung’s own constraint checks (check_constraints.py on the saved board) and custom KiCad rules (plane layers carry no tracks, via policy, differential-pair skew, length-match groups), and the purpose-built top rung. Seeds 0 and 1 with the initial placement pool (8 starts, 3 routed finalists), the runner’s other defaults (no compact placement or gloss) and the legacy fabrication profile, as the nightly CI hard-rung step runs them; engine 1f4c3d8, GCP C4 (x86-64), KiCad 10.0.6. Values are seed 0 / seed 1; the time is the case’s wall time (one vCPU per case; two for the top rung).

Rung

Parts

Nets

Layers

Added difficulty

Seeds 0, 1

Opens

Findings

Vias

Copper (mm)

Time (s)

09-mcu-usb-31

31

27

2

ATmega32U4 TQFP-44, crystal, USB Micro-B with two differential pairs, LDO, LEDs

pass, pass

0 / 0

0 / 0

39 / 49

792.9 / 971.5

357 / 371

10-quad-bank-56

56

50

2

Hierarchy: a clock block and one CD4017B bank template placed and routed four times

pass, pass

0 / 0

0 / 0

62 / 62

1076.6 / 1076.6

102 / 102

11-power-switch-31

31

17

2

Four-channel 12 V MOSFET switch: 3 A trunk, 1.5 A outputs, current-sized copper

pass, pass

0 / 0

0 / 0

22 / 20

748.0 / 726.7

69 / 49

11-buck-vqfnhr-4L-SGPS-pour

10

6

4

Buck stage on VQFN-HR hot-rod lands no track can enter, joined by outer pours

pass, pass

0 / 0

0 / 0

17 / 17

45.7 / 49.5

14 / 16

11-ufbga201-fanout-6L-SGSGPS-rails

19

55

6

0.65 mm UFBGA-201 escape; two of three supply rails share one plane (the trickle rail traced on a signal layer), IR drop judged per rail

pass, pass

0 / 0

0 / 0

133 / 137

791.2 / 827.9

102 / 102

11-ufbga201-fanout-6L-SGSGPS-pairs

18

55

6

0.65 mm UFBGA-201 escape; an LVDS pair coupled on F.Cu from the fanout (skew 0.1 mm)

pass, pass

0 / 0

0 / 0

135 / 135

815.1 / 884.9

94 / 95

12-soc-bga-113

113

112

6

STM32F746 UFBGA176+25: SDRAM with a length-matched lane, QSPI, RMII PHY, USB, microSD; four supply domains

fail, fail

37 / 40

18 / 20

355 / 375

2522.5 / 2606.9

1294 / 1083

The top rung, 12-soc-bga-113 (soc_rung.py, manual lane), is a purpose-built single-board computer: an STM32F746 in a 0.65 mm UFBGA176+25 with a 16-bit SDRAM whose high data byte lane is a length-match group (1.0 mm), a quad-SPI flash, an RMII Ethernet PHY with series and MDI terminations, USB full speed, microSD, SWD and I/O connectors, and four supply domains (USB 5 V, a buck to 3.3 V that owns the supply plane, two LDOs whose analog rails are routed on signal layers) on six layers. Its pin map is KiCad’s STM32F746IGKx symbol; hard proximity groups keep each part’s support parts beside it; the ladder README describes it. It is the ladder’s target, not yet a pass (engine bc82338, the same configuration): the router leaves 34 of its 112 nets open on both seeds, and KiCad’s findings name what is still missing besides capacity: the SDRAM lane out of skew (9 / 8 skew_out_of_range), tracks through the keep-outs the microSD and QFN footprints carry (5 / 10 items_not_allowed: the router does not read footprint rule areas), a via 0.19 mm from the USB receptacle’s shell hole (2 / 2 hole_to_hole, minimum 0.25 mm) and 2 / 0 clearance. Its proximity, edge and fixed checks pass; the fanout-escape check does not (balls left unrouted). It carries a ci.target (dense-board routing) in the manual lane.

Push-and-shove rungs

11-shove-channel-14 and 11-shove-channel-lm-14 (shove_rungs.py, manual lane) are small two-layer boards made for a push-and-shove router: a copper wall with one 4.25 mm channel, a 10-net bus through it and four late nets that cross the bus and share the channel. Nine tracks fit per layer (eight on a 0.25 mm routing grid) and fourteen nets need the channel; the -lm variant turns the bus north after the channel and matches it to 0.5 mm, so its meanders need the room the late nets cross. They are routable by construction, and the current router (negotiated rip-up and reroute) leaves nets open on them: they are marked as targets for the queued push-and-shove router (ci.target), not gated.

Seeds 0 and 1, the same configuration and engine as the rungs above:

Rung

Parts

Nets

Layers

Seeds 0, 1

Nets left open (engine)

KiCad opens

KiCad findings

Time (s)

11-shove-channel-14

4

14

2

fail, fail

B5, X0 / B5, X0

2 / 2

0 / 0

148 / 152

11-shove-channel-lm-14

4

14

2

fail, fail

X2, X3 / X2, X3

2 / 2

9 / 9 (skew_out_of_range: the bus is not matched)

161 / 163

CI test rungs

The other hard rungs vary one dimension of a base (stackup, via policy, sides, placement constraints, search, parts) and stay CI test rungs: the nightly lane runs every night (informational), the manual lane on request. The same campaign’s results:

Rung

Lane

Dimension

Parts

Cu

Seed 0

Seed 1

Vias

Time (s)

09-mcu-usb-31-4L-SGPS

manual

stackup 4L-SGPS

31

4

pass

pass

73 / 82

110 / 129

09-mcu-usb-31-4L-SSGS

manual

stackup 4L-SSGS

31

4

pass

pass

69 / 77

233 / 182

09-mcu-usb-31-6L-SGSGPS

manual

stackup 6L-SGSGPS

31

6

pass

pass

76 / 84

120 / 162

09-mcu-usb-31-abs

manual

constraints absolute

33

2

pass

pass

56 / 53

307 / 265

09-mcu-usb-31-rel

manual

constraints relative

31

2

pass

pass

50 / 50

326 / 341

09-mcu-usb-31-sidelock

manual

sides assigned

31

2

pass

pass

43 / 51

313 / 329

09-mcu-usb-31-mc

manual

search mc

31

2

pass

pass

41 / 40

277 / 265

09-mcu-usb-31-header

manual

parts tht-header

31

2

fail (stage_failure)

fail (stage_failure)

-

25 / 26

07-chaser-20-4L-SGPS

nightly

stackup 4L-SGPS

20

4

pass

pass

28 / 32

27 / 51

07-chaser-20-4L-SGGS

nightly

stackup 4L-SGGS

20

4

pass

pass

25 / 29

31 / 40

07-chaser-20-4L-SSGS

nightly

stackup 4L-SSGS

20

4

pass

pass

29 / 30

32 / 32

07-chaser-20-6L-SGSSPS

nightly

stackup 6L-SGSSPS

20

6

pass

pass

26 / 34

32 / 33

07-chaser-20-6L-SGSGPS

nightly

stackup 6L-SGSGPS

20

6

pass

pass

30 / 32

30 / 30

07-chaser-20-8L-SGSGPSGS

nightly

stackup 8L-SGSGPSGS

20

8

pass

pass

30 / 30

31 / 49

07-chaser-20-6L-SGSGPS-BB

nightly

stackup 6L-SGSGPS, via policy blind-buried

20

6

pass

pass

31 / 34

78 / 91

07-chaser-20-6L-SGSGPS-HDI

nightly

stackup 6L-SGSGPS, via policy hdi

20

6

pass

pass

32 / 38

96 / 88

07-chaser-20-double

nightly

sides double

20

2

pass

pass

14 / 15

45 / 46

07-chaser-20-4L-SGPS-double

nightly

stackup 4L-SGPS, sides double

20

4

pass

pass

24 / 24

36 / 36

07-chaser-20-abs

nightly

constraints absolute

22

2

pass

pass

22 / 22

36 / 38

07-chaser-20-rel

nightly

constraints relative

20

2

pass

pass

21 / 21

37 / 31

07-chaser-20-sidelock

nightly

sides assigned

20

2

pass

pass

15 / 18

75 / 82

07-chaser-20-4L-SGPS-arcblock

nightly

stackup 4L-SGPS, parts arcblock

22

4

pass

pass

38 / 43

32 / 30

11-ufbga201-fanout-6L-SGSGPS

manual

stackup 6L-SGSGPS

17

6

pass

pass

133 / 135

89 / 89

11-ufbga201-fanout-6L-SGSGPS-block

manual

stackup 6L-SGSGPS, parts block

18

6

pass

pass

142 / 141

103 / 92

11-ufbga201-fanout-6L-SGSGPS-classes

manual

stackup 6L-SGSGPS, constraints classes

18

6

pass

pass

133 / 133

94 / 96

11-ufbga201-fanout-6L-SGSGPS-partial

manual

stackup 6L-SGSGPS, constraints partial

17

6

pass

pass

131 / 133

91 / 89

11-buck-vqfnhr-4L-SGPS

manual

stackup 4L-SGPS

10

4

pass

pass

12 / 12

14 / 14

09-mcu-usb-31-header fails in this configuration because the initial pool cannot place its pin-1-origin header; it passes with compact placement (see Compact placement).

Showcases

Four more cases show what the engine does with placement constraints and with hierarchy: the five-stage chaser with its LEDs held in a line group, a small board with its connector, button and LED held on the south edge (each beside a twin without the constraint), and a twin-bank chaser placed and routed as blocks. They run through the same runner and gate, but they are not ladder cases: they are outside the gate and the pull-request lane (the nightly lane runs them for information). Their animations and results are on Constraints and hierarchy.

Reading an animation

  • Header: the case, and its parts, connected nets and copper layers.

  • Footer: the phase and the experiment it belongs to (start-05 is the sixth start of the initial placement pool), the share of connections routed, and the step within the phase. The number and the mint bar count committed copper (or, after writeback, KiCad’s own count); while the router still negotiates (provisional routes, overlaps allowed), a lighter violet bar fills behind it.

  • Board: front copper orange, back copper blue, inner layers violet and yellow (planes as a light fill), vias as rings, unrouted connections as thin grey ratsnest lines. New copper flashes green; ripped-up copper flashes red. A red ring marks each KiCad DRC finding, if any. Part outlines are the courtyards the placer keeps apart (with compact placement, offset to where the footprint actually lies about its origin).

  • Gloss (before and after): with the gloss stage, the board before it shows the copper the stage replaces in dashed red (“Gloss: before” and the copper length), then cross-fades to the board after it with the new copper in green (“Gloss: after”, the length and its change). Only copper whose geometry changed is marked: the pass also merges collinear pieces of a track, which leaves the copper as it was. A case whose copper the stage did not change shows “Gloss · no copper changed” instead.

  • Montages: where the engine chose between experiments, the candidates appear side by side with their score; the chosen one is framed, and the view zooms back into it. A montage comes right after the winner’s own replay has reached the state its tiles show, so the timeline never runs ahead of itself: the pool’s shortlist (legal starts ranked by a capacity proxy) follows the chosen start’s legalization, and the routed finalists follow its route.

  • The straight line: title card, the unplaced board (footprints in the generator’s row), the chosen start’s global placement and legalization, the shortlist, detailed routing (negotiation, then commits), the finalists, KiCad’s writeback and planes, the gloss stage’s before and after, the zone refill, then the verdict. With feedback rounds, each round on the path follows with its congestion map.

  • End card: KiCad’s DRC on the saved board (mint when the gate passes, red with the rules it breaks when it fails), vias, copper length, seed and the number of rivals set aside.

Animations

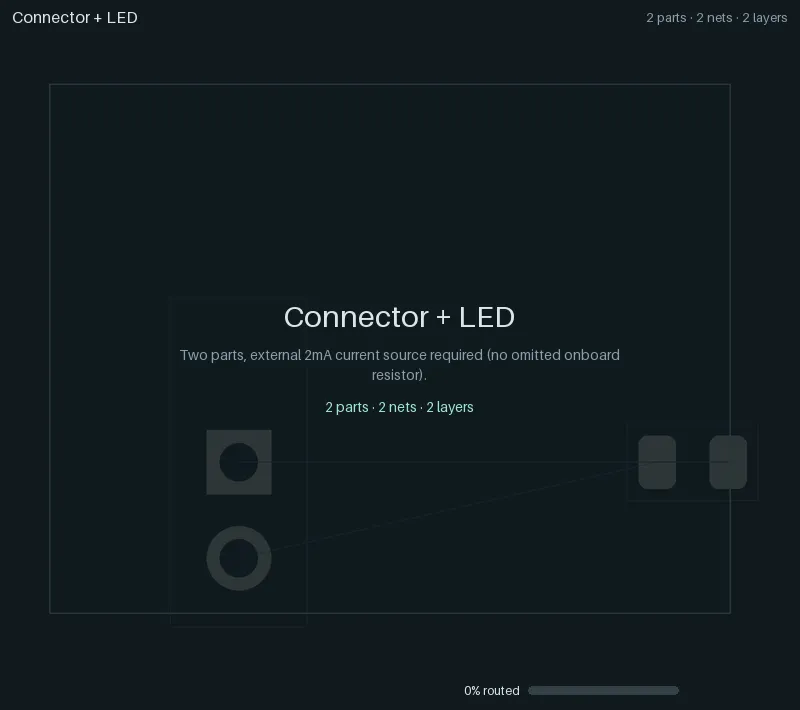

01 Connector + LED

Animation: an LED placed beside a two-pin connector and joined by two front-copper tracks;
  KiCad DRC passes.

Two parts, externally current limited (no onboard resistor). 2 nets, 0 vias, 6.3 mm of copper; the LED sits beside the connector’s pins (5.8 × 6.2 mm placed); the gloss stage changes no copper. KiCad: 0 unconnected, 0 findings. Passes.

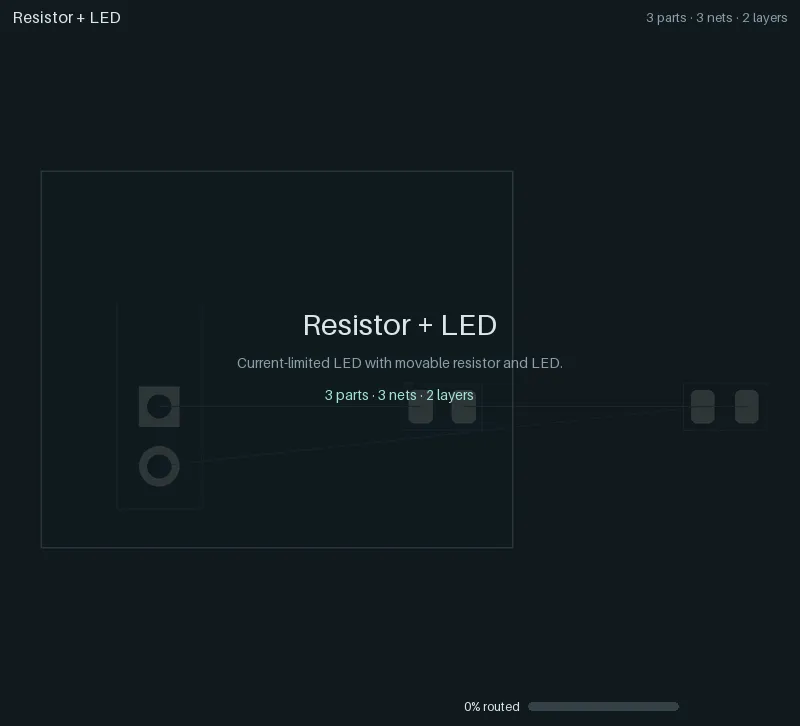

02 Resistor + LED

Animation: a connector, a series resistor and an LED placed and routed; KiCad DRC
  passes.

A movable series current limiter. 3 nets, 0 vias, 13.1 mm of copper (5.7 × 9.0 mm placed); the gloss stage changes no copper. KiCad: 0 unconnected, 0 findings. Passes.

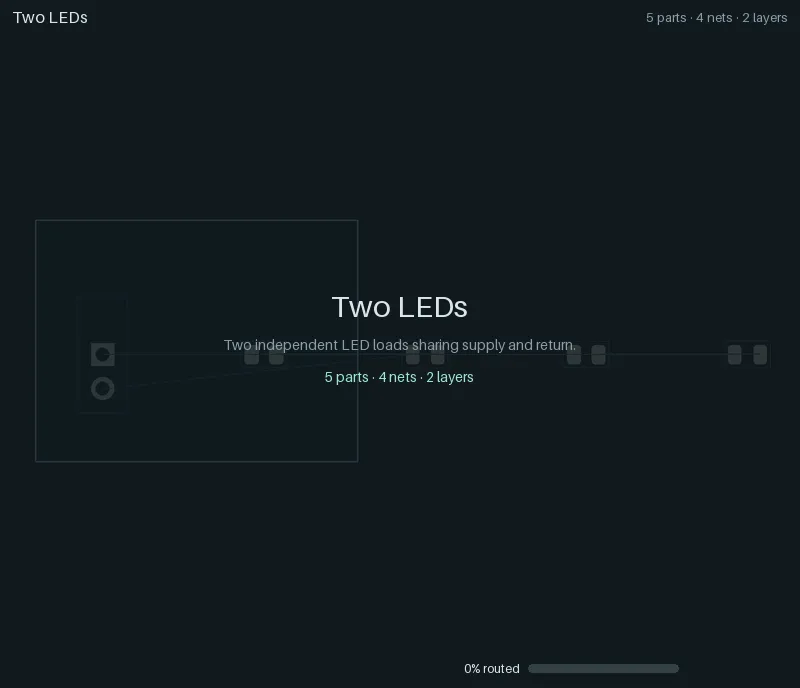

03 Two LEDs

Animation: two resistor and LED branches sharing supply and return, placed and routed;
  KiCad DRC passes.

Two independent LED loads sharing supply and return. 4 nets, 0 vias, 24.1 mm of copper (8.3 × 8.7 mm placed); the gloss stage straightens one short track (0.01 mm less). KiCad: 0 unconnected, 0 findings. Passes.

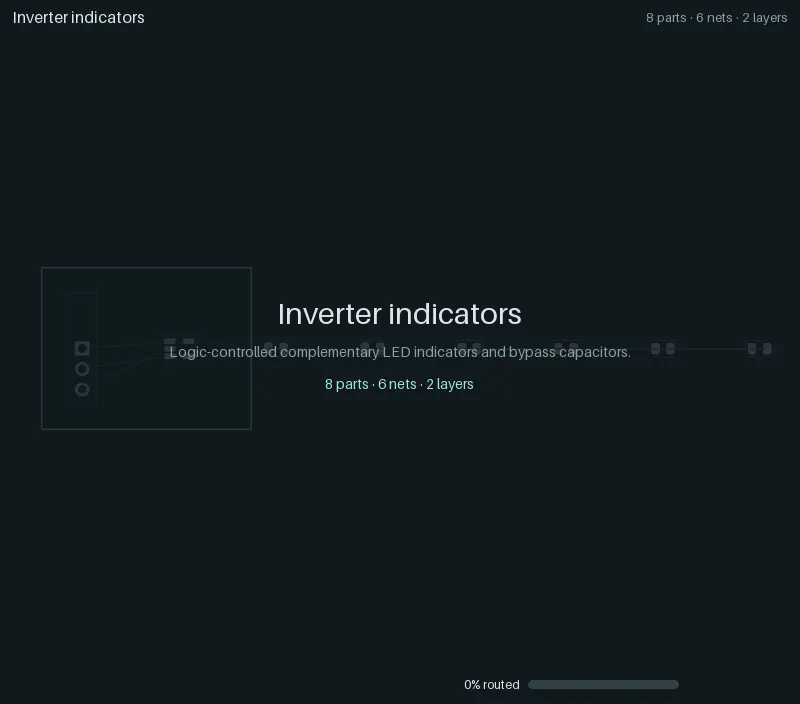

04 Inverter indicators

Animation: an SOT-23-5 inverter with bypass capacitors and two LED indicators, placed and
  routed; KiCad DRC passes.

Complementary LED indicators driven by an SN74LVC1G04, with bypass capacitors and one unused pad. 6 nets, 2 vias, 56.1 mm of copper (12.6 × 13.6 mm placed); gloss: 56.4 to 56.1 mm of copper. KiCad: 0 unconnected, 0 findings. Passes.

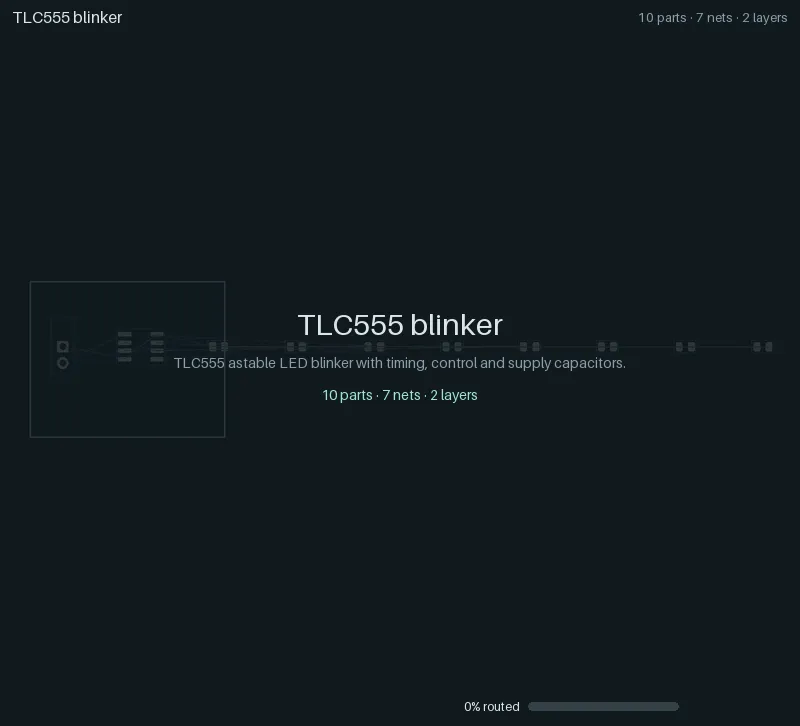

05 TLC555 blinker

Animation: a TLC555 astable LED blinker with its timing, control and supply capacitors,
  placed and routed; KiCad DRC passes.

The 555 flasher: a TLC555 astable with timing, control and supply capacitors, and the README’s animation (also as a GIF, 05-timer-led-10.gif). 7 nets, 4 vias, 75.1 mm of copper (14.1 × 15.0 mm placed); gloss: 76.5 to 75.1 mm of copper, 10 to 5 signal bends. KiCad: 0 unconnected, 0 findings. Passes.

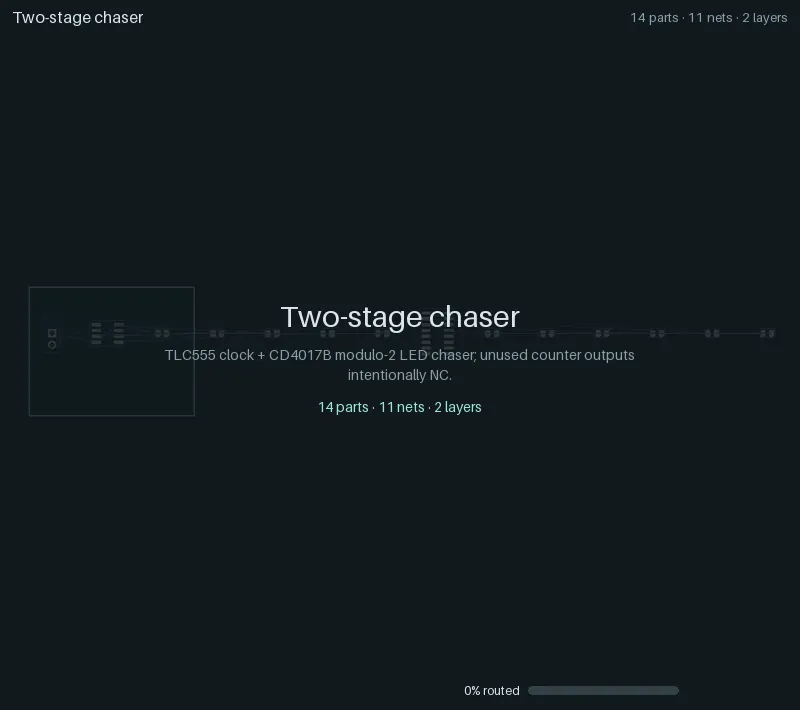

06 Two-stage chaser

Animation: a TLC555 clocking a CD4017B that drives two LEDs, placed and routed; KiCad DRC
  passes.

A TLC555 clocking a CD4017B Johnson counter, modulo 2, with cross-IC clock and reset. 11 nets, 6 vias, 165.6 mm of copper (20.9 × 19.6 mm placed); gloss: 167.1 to 165.6 mm of copper, 26 to 12 signal bends. KiCad: 0 unconnected, 0 findings. Passes.

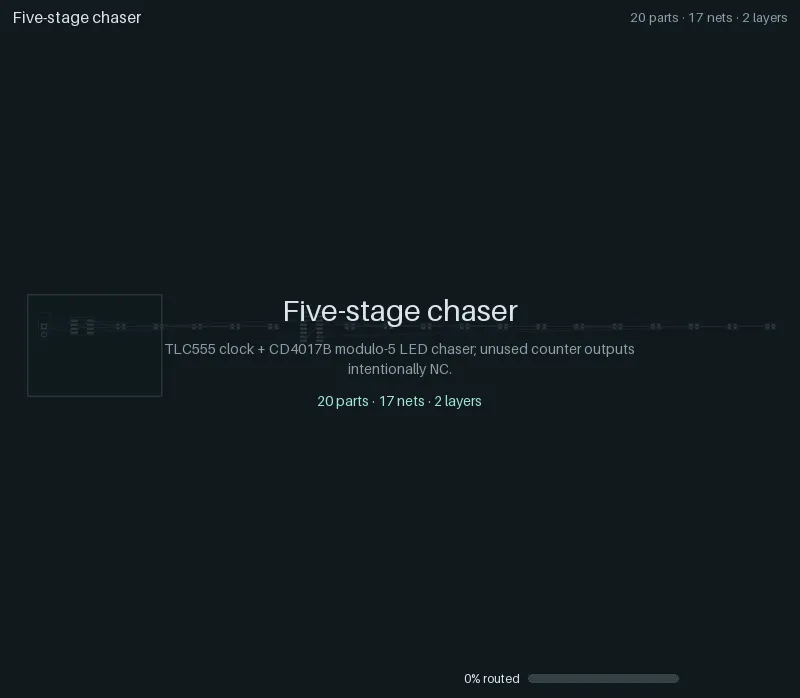

07 Five-stage chaser

Animation: a TLC555 and CD4017B five-stage LED chaser with 20 parts, placed and routed on
  two layers; KiCad DRC passes.

The same timer and counter driving five LED and resistor outputs on two layers: the densest two-layer board. 17 nets, 13 vias, 220.8 mm of copper (21.2 × 23.6 mm placed); gloss: 225.5 to 220.8 mm of copper, 58 to 23 signal bends. KiCad: 0 unconnected, 0 findings. Passes.

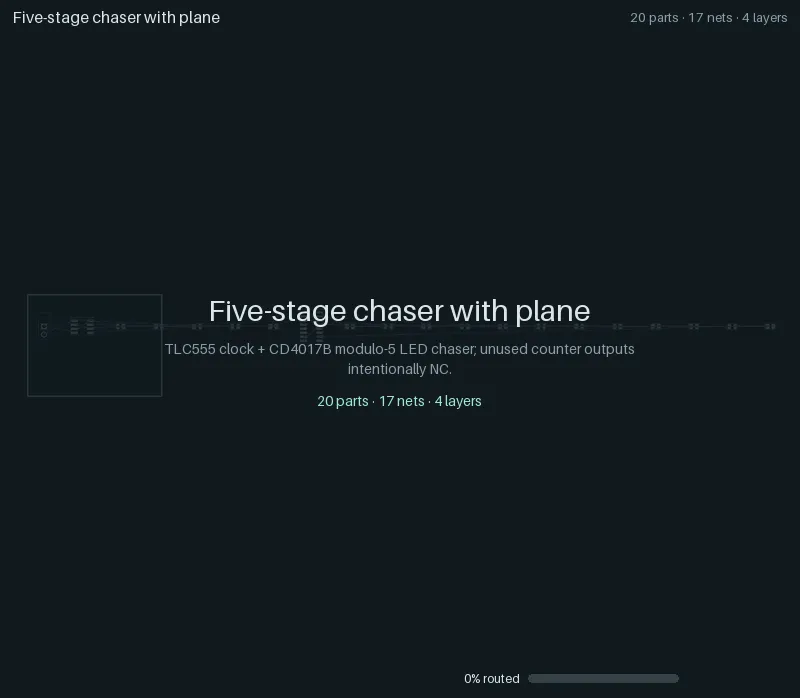

08 Five-stage chaser with plane

Animation: the five-stage LED chaser on four copper layers with an inner ground plane,
  placed and routed; KiCad DRC passes.

Case 07 on four copper layers, with the return on an inner ground plane (attachment and zone refill). 17 nets, 27 vias, 172.6 mm of copper (23.1 × 20.6 mm placed); gloss: 176.5 to 172.6 mm of copper, 56 to 30 signal bends. KiCad: 0 unconnected, 0 findings. Passes.

Regenerating

The ladder needs a numerical Python (torch, NumPy, PyYAML) and KiCad 10 with its Python module and footprint library. On macOS, use the headless KiCad copy (see DEVELOPERS.md), never the application bundle; run niced on a shared machine. The committed animations were made in two steps, a traced ladder run and a render:

# 1. The traced ladder (about 7 minutes on the development Mac); the output must not exist.
#    --compact, --gloss and the legacy --fab-profile are the runner's own defaults since
#    ladder-v2 (recorded in each animation's config regardless).
"$NUMERIC_PYTHON" hardware/pnr/regression/run.py --repo . --out .yapnr/ladder/RUN --seed 0 \
  --trace --initial-pool --initial-starts 8 --initial-finalists 3 --compact --gloss \
  --python "$NUMERIC_PYTHON" --kicad-python "$PNR_KICAD_PYTHON" \
  --kicad-cli "$PNR_KICAD_CLI" --library "$PNR_KICAD_FOOTPRINTS"

# 2. Render every case into docs/animations/ (WebP, the README GIF, manifest.json and
#    ladder-results.json); no KiCad needed. --allow-failed also renders failed cases (their end
#    card names the broken rules in red).
bazel run //hardware/pnr:ladder_animations -- --render-only "$PWD/.yapnr/ladder/RUN"

bazel run //hardware/pnr:ladder_animations without --render-only does both (pass --python, --kicad-python, --kicad-cli and --library, and --runner-arg=--compact --runner-arg=--gloss for the committed configuration); it reruns a case that fails in pool mode in the baseline configuration (with --fallback-runner-arg=--gloss, without compact placement). One case, or another trace, renders with bazel run //hardware/pnr:animate -- SOURCE --out FILE.webp (python -m pnr.animate; .gif and, with ffmpeg, .mp4 work too). .yapnr/ is git-ignored: only the rendered animations and the two JSON files are committed.

pnr.animate also takes the output directory of a successive-halving search (pnr.mc.halving). Such a run records no trace, so its animation is reconstructed from what it saved (the overlay does not claim more): the winner’s placement moving in from the source board, a montage per promotion (the candidates’ placements with their rung objective), the winning rung’s native phases (phases/NN-name/diagnostic.kicad_pcb with each phase’s KiCad DRC) and a montage of that rung’s final boards, then the verdict. Blocks assembled from a synthesis library appear in place; a library itself has no board to draw, and --storyboard FILE writes its critical path (the chosen layout per template and its rivals) instead. The animator only reads its sources.

Rendering is deterministic: the same trace gives the same bytes. Renderer 3 (the manifest’s renderer) adds the gloss stage’s before and after; a trace without the stage renders as before. Budgets: the ladder’s WebPs at most 2.5 MB (800 px), its README GIF at most 5 MB (640 px), the folder at most 30 MB with the showcases, whose own widths and budgets are on Constraints and hierarchy (tests/unit/repo/test_animations.py checks them all). Refresh the committed animations deliberately, after a notable engine change, not on every pull request: each refresh adds about 12 MB to the history.

Gloss

run.py --gloss adds one stage after the refill: the gloss, dekink and corridor-coalescing pass (PNR_GLOSS, on by default since ladder-v2, docs/decisions.md; --no-gloss restores the plain runner path; design), with the semantics of the native loop’s 07g-gloss pass, gated inside the pass by native checks and a cold KiCad DRC, and again by the runner’s own DRC (a worse DRC restores routed.pre-gloss.kicad_pcb). --gloss-flag PNR_GLOSS_NAME=VALUE passes sub-flags, and --gloss-measure measures every final board, for both arms of an A/B.

A/B of 2026-10-03 (Mac) and 2026-10-05 (GCP, the native-loop A/B that unblocked the default): the eight cases and the four showcases, seeds 0 and 1, one engine for both arms, legacy profile:

run.py ... --seed 0 --seed 1 --showcases --no-gloss --gloss-measure    # off
run.py ... --seed 0 --seed 1 --showcases --gloss --gloss-measure       # on

Every on-arm case pairs with its off-arm twin (the same placement, routes and pre-gloss copper, copper_sha256). “Length” and “Bends” are the eligible signal copper (Default netclass, signal width) and every degree-2 vertex on it; X is the summed excess gap to same-class neighbours within 2 mm (smaller is tighter) and DS the free area no signal track can use. Transactions are accepted of proposed. “Gloss” is the stage’s wall and CPU time with its two cold DRCs; “Case CPU” is the whole case’s CPU time without --gloss-measure, which both arms run.

Case

Seed

Gate off / on

Opens, findings

Length (mm)

Bends

X (mm²)

DS (mm²)

Transactions

Gloss wall / CPU (s)

Case CPU off / on (s)

01-connector-led-2

0

pass / pass

0, 0 → 0, 0

4.6

3

0.0

0.03

1 of 1

12 / 29

9 / 38

01-connector-led-2

1

pass / pass

0, 0 → 0, 0

4.6

3

0.0

0.03

1 of 1

12 / 29

9 / 38

02-resistor-led-3

0

pass / pass

0, 0 → 0, 0

3.7

5

0.0

0.21

1 of 1

12 / 29

9 / 38

02-resistor-led-3

1

pass / pass

0, 0 → 0, 0

6.7 → 5.9

9 → 5

0.0

0.32 → 0.09

3 of 3

18 / 40

9 / 50

03-branched-leds-5

0

pass / pass

0, 0 → 0, 0

10.2 → 10.1

12 → 9

0.0

0.17

2 of 2

15 / 34

9 / 44

03-branched-leds-5

1

pass / pass

0, 0 → 0, 0

8.2

10

0.0

0.10

1 of 1

11 / 29

10 / 39

04-inverter-leds-8

0

pass / pass

0, 0 → 0, 0

35.6 → 35.0

33 → 26

4.0 → 6.3

0.52 → 0.46

3 of 3

16 / 41

12 / 53

04-inverter-leds-8

1

pass / pass

0, 0 → 0, 0

38.3 → 37.3

40 → 27

0.0

0.66 → 0.57

5 of 5

20 / 52

13 / 65

05-timer-led-10

0

pass / pass

0, 0 → 0, 0

47.4 → 45.7

59 → 41

0.8 → 0.6

2.01 → 1.90

4 of 5

21 / 48

15 / 63

05-timer-led-10

1

pass / pass

0, 0 → 0, 0

69.6 → 65.8

67 → 44

6.8 → 4.4

2.12 → 1.20

8 of 8

30 / 71

49 / 122

06-chaser-14

0

pass / pass

0, 0 → 0, 0

150.7 → 144.7

113 → 85

34.6 → 21.2

2.29 → 2.62

7 of 7

31 / 71

31 / 102

06-chaser-14

1

pass / pass

0, 0 → 0, 0

113.5 → 111.6

91 → 65

13.3 → 14.3

2.98 → 2.49

6 of 6

24 / 60

37 / 96

07-chaser-20

0

pass / pass

0, 0 → 0, 0

231.8 → 220.0

191 → 130

20.8 → 9.7

3.93 → 3.88

10 of 10

41 / 92

49 / 142

07-chaser-20

1

pass / pass

0, 0 → 0, 0

217.8 → 206.6

180 → 120

52.1 → 38.7

4.59 → 2.98

13 of 14

55 / 114

115 / 231

08-chaser-20-plane

0

pass / pass

0, 0 → 0, 0

231.7 → 226.9

171 → 127

37.4 → 25.1

4.74 → 3.82

13 of 13

46 / 107

82 / 188

08-chaser-20-plane

1

pass / pass

0, 0 → 0, 0

248.3 → 237.0

192 → 110

45.6 → 22.1

4.98 → 2.78

15 of 15

53 / 121

198 / 315

edge-io-12

0

pass / pass

0, 0 → 0, 0

93.0 → 89.6

90 → 53

9.5 → 3.8

1.51 → 1.25

6 of 6

25 / 61

21 / 81

edge-io-12

1

pass / pass

0, 0 → 0, 0

94.7 → 91.0

94 → 61

19.0 → 14.1

1.55 → 1.31

10 of 10

38 / 85

38 / 122

edge-io-12-free

0

pass / pass

0, 0 → 0, 0

100.1 → 95.6

82 → 52

18.7 → 21.5

1.77 → 1.67

8 of 8

29 / 72

32 / 105

edge-io-12-free

1

pass / pass

0, 0 → 0, 0

94.4 → 90.9

82 → 43

13.8 → 11.8

1.58

9 of 9

30 / 76

22 / 98

hier-twin-bank-32

0

pass / pass

0, 0 → 0, 0

323.9 → 307.8

279 → 210

66.1 → 54.5

8.56 → 5.21

7 of 7

45 / 84

213 / 296

hier-twin-bank-32

1

pass / pass

0, 0 → 0, 0

307.4 → 294.3

271 → 202

63.2 → 58.4

8.71 → 6.14

7 of 7

42 / 83

224 / 305

line-chaser-20

0

pass / pass

0, 0 → 0, 0

235.8 → 227.4

188 → 125

34.2 → 32.6

3.57 → 3.26

10 of 10

39 / 90

58 / 147

line-chaser-20

1

pass / pass

0, 0 → 0, 0

184.3 → 177.6

162 → 96

20.8 → 10.4

3.22 → 3.17

6 of 6

30 / 67

35 / 102

  • No regression: all 24 runs pass the gate in both arms; KiCad’s opens and findings (0 and 0 everywhere), the objective vector and the audit are unchanged. The runner’s outer gate never fired, no pass reverted at its end gate and none stopped on a budget.

  • Bends -32 % in total (2427 to 1652; 0 to -48 % per run), length -4.0 % (2856.3 to 2741.9 mm; never up), X -24 % in total and DS -22 %. X rose on three runs and DS on one: the router’s cost ranks first, and a shortcut that saves at least 0.2 mm is kept even when it moves a track off its neighbour.

  • The legalizer at work: 156 of 158 transactions accepted; the trial worker dropped the other two edits on the applied board (a new same-net contact, L2, and a corridor member whose segments an earlier transaction had replaced). Edits: normalize 281, dekink 162, gloss 185, corridor 18.

  • Cost: the stage takes 11 to 55 s of wall time and 29 to 121 s of CPU per case, a roughly fixed overhead (KiCad worker start-up and the cold DRCs dominate on these small boards). In all, the on arm used 2880 s of CPU against 1301 s (2.2 times) and 1918 s of wall time against 1226 s (+56 %). Per case the CPU factor falls with the case’s size: 2.5 to 5.4 on cases 01 to 05, 3.2 to 4.4 on the edge-io showcases, 1.6 to 3.3 on the chaser cases and 1.4 on hier-twin-bank-32.

  • Against the first A/B (engine 879f22c, before the ray metric stopped depending on the drawing direction): the off arm’s copper is the same on all 24 runs; 21 of the 24 on-arm runs keep the same copper, and three take a different equal-cost edit (length within 0.1 mm, the same bends). X counts a few more samples now (a ray through a neighbour’s vertex counts the neighbour), so its values are not comparable with the first A/B’s.

  • Functional groups (first A/B): 07-chaser-20 with the example groups file (docs/examples/gloss-groups-chaser.json) and the groups derived from the rules gives the same copper as without groups (longest cross-group run at minimum pitch 0 and 1.5 mm, under the 10 mm cap).

  • Determinism: the off arm repeats the first A/B’s copper on all 24 runs, and a rerun of 04-inverter-leds-8 and 07-chaser-20 (seed 0) with the gloss stage gave the same copper; only the direction in which a few merged segments are drawn differed (1 and 4 segments), which copper_sha256 and the metrics ignore.

The ladder runs the pass after a complete route, so it cannot show whether the pass helps or hurts completion; turning it on by default waits for a paired A/B of the native loop.

Compact placement

run.py --compact places with PNR_COMPACT=1 (on by default since ladder-v2, docs/decisions.md; --no-compact restores the pre-ladder-v2 runner path; design): spread 1.0 and starts clustered around the fixed parts, the courtyard gap instead of the routing clearance in the legalizer (with a copper margin only where a part’s box hugs its pads), offset courtyards (a pin-1-origin header occupies its real extent), a compactness tie-break after every completion key and the vias, and the plane drops of a plane_layer net without a declared stack planned before routing, and the legalizer parts of the design’s section 11: the wirelength term with the turn chosen with the slot, in-place turns, and line satellites. --compact-off PART drops one part (GP, RANK, LEGALIZE, COURTYARD, DROPS, WIRE, TURN, SATELLITES, PAIRS, RELAX) for an ablation. PAIRS lets the matched-length pass turn a pair’s series parts to face their legs; RELAX runs every round after one that does not route (a net open or a pair out of skew) without compact, the first of them as the run without compact does (design, section 12). --shrink (PNR_SHRINK=1) also searches a smaller outline inside the design’s and writes the board at the smallest that routes; hard rungs are exempt. Both are recorded in provenance.json (pnr_environment).

The legalizer and global-placement switches of the design’s section 11 are runner options too, off by default and usable with or without --compact: --gp-polish, --gp-channels L, --pool-source-clamp, --legalize-hpwl W, --legalize-reorient [wire], --legalize-channel-clearance fab and --line-satellites (PNR_GP_POLISH, PNR_GP_CHANNELS, PNR_POOL_SOURCE_CLAMP, PNR_LEGALIZE_HPWL, PNR_LEGALIZE_REORIENT, PNR_LEGALIZE_CHANNEL_CLEARANCE, PNR_LINE_SATELLITES, recorded in provenance.json like the others).

Every case’s result.json gains compactness, measured alike in every arm on the parts’ body boxes in placed.json: the bounding box (bbox_mm2, bbox_mm), the summed body area, utilization (area over bbox), occupancy (area over the outline) and the outline area.

run.py ... --seed 0 --seed 1 --showcases --gloss-measure --no-compact         # off
run.py ... --seed 0 --seed 1 --showcases --gloss-measure --compact            # compact
run.py ... --seed 0 --seed 1 --showcases --gloss-measure --compact --shrink   # and shrink

The animation scripts pass such options with --runner-arg (for example animate_ladder.py ... --runner-arg=--compact --runner-arg=--gloss, now the runner’s own defaults) and record them in each animation’s config; --fallback-runner-arg gives animate_ladder.py’s baseline fallback its own (--fallback-runner-arg=--no-compact reruns a failed compact case without it). The committed animations use the runner’s own defaults, which are --compact --gloss (see The cases).

Results (2026-10-03, GCP C4D x86-64, seeds 0 and 1): with --compact the eight cases and four showcases all pass (with and without gloss), as do 09-mcu-usb-31-header (whose pool fails without it), 08-chaser-20-plane on seeds 0 to 9 (7 of 10 without it) and the 14 nightly hard rungs; the summed placed bounding box of the 24 ladder cells drops from 13068 to 8122 mm² and their copper from 4777 to 4022 mm, for 28 more vias. It stays off by default because 5 of the 16 manual 09-mcu-usb-31 rung cells had with it at the time (see the design section 12): RELAX (every round after one that does not route falls back to the plain packer) and PAIRS (the matched-length pass may turn a pair’s series parts to face their legs) fixed the lane without losing the rest of the gain, so ladder-v2 (docs/decisions.md) made --compact the runner’s own default.

Route-then-compact (opt-in)

run.py --route-compact [PARTS] (PNR_ROUTE_COMPACT, off by default; design) squeezes a routed placement by the copper each gutter actually holds, x then y, and routes it again; a worse route backs off and the routed result stands. PARTS is 1 (all) or a comma list: TOP (the hierarchical top level, after the knit), BLOCK (inside each block template, whose outline then shrinks) and FLAT (flat boards, after the place-route loop). With --macro-hull (PNR_MACRO_HULL) hierarchical blocks enter as their routed outlines (per-side hulls) and slide into each other’s notches; --hull-dovetail W (PNR_HULL_DOVETAIL) adds a packing term to global placement over the hull bodies. pnr-report.json records the pass as route_compact (gutters, steps, bounding box and the outline shrink it frees, seconds).

The hierarchical runner’s default bundle includes hull nesting. Legalized hull macros search nearby legal poses; incomplete knits retain the un-nested and rectangle fallbacks. Use --hull-nest 0 to disable nesting while keeping the rest of the default bundle, or hull_nest = false in a ladder campaign. The direct engine equivalent is PNR_HULL_NEST=0; nesting is otherwise enabled whenever hull macros are enabled. See the nesting validation and limitations.

Results (2026-10-07, GCP C4D, flags off against each arm, KiCad’s DRC judging every board):

Rungs (cells)

Arm

Pass

Bounding box

Copper

Vias

Place-route time

ladder 01-08, pool 8/3 (16)

off

16/16

3151 mm²

1136 mm

70

115 s

--route-compact

16/16

-21.5 %

-11.3 %

-3 %

+32 %

hier-twin-bank, 10-quad-bank, 13-dovetail, seeds 0-3 (12)

off

12/12

5336 mm²

2181 mm

144

245 s

--route-compact

12/12

-6.7 %

-4.4 %

+4 %

+84 %

--macro-hull

12/12

-6.2 %

-0.8 %

+3 %

+35 %

--route-compact --macro-hull --hull-dovetail 1

12/12

-19.2 %

-5.3 %

+4 %

+64 %

35 other hard rungs, seeds 0-1 (70)

off

60/70

39029 mm²

19266 mm

2225

1939 s

--route-compact

61/70

-6.8 %

-3.3 %

-0.4 %

+101 %

Bounding box, copper and vias are sums of the per-rung means over the cells that placed in both arms; time is the place-route stage. No rung passes less often or ends with more than 1 % more copper. The time goes to the reroutes (measuring and checking take under a second per board): a few seconds a step on the small boards, one to two minutes on the MCU and BGA rungs. The BGA rungs keep their bounding box (the parts at its extremes are fixed).

In CI

.github/workflows/ladder.yaml runs the ladder inside the published arm64 image: cases 01 to 06 with seed 0 on pull requests that change engine inputs, and nightly all eight cases with seeds 0 and 1, under the runner’s own defaults (ladder-v2: compact, gloss, the initial placement pool, coupled diff-pair routing, the legacy fab profile, displacement-minimizing legalization with detailed placement) and traced – one configuration, which both decides the job and feeds the animations job, so docs and CI agree. Its animations are uploaded as an artifact and its trace hashes are compared with animations/manifest.json (a drift is a notice). The showcases run the same defaults, traced. Nightly it then runs the hard rungs of the ladder lane (rungs 09 to 11) and of the nightly lane (the chaser variants), seed 0, with the same defaults: informational, a hard rung never decides the job. The lane is informational, not a required check yet; its aggregate check is named ladder.
